Max Seal Doors
Commercial - Industrial - Clean Room

See High Speed Doors
Stripcurtains.com offers Max Seal Hi-Speed Doors for quick access through openings. They are designed for high volume, high speed traffic in commercial, industrial or refrigerated applications. All doors incorporate a state-of-the-art microprocessor controlled AC variable speed drive system, allowing the door to move at faster speeds than conventional doors. All roll-up doors are equipped with standard safety features for protection against injury.
High Speed Door Demo Video

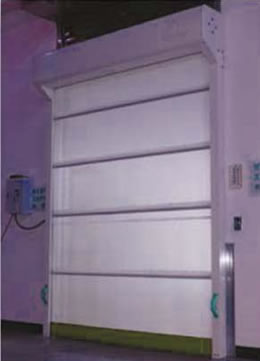

Turbo Seal High Speed Door
This text will be replaced

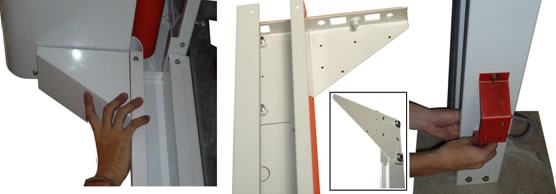

EASY INSTALLATION - PRE ASSEMBLED CABINETS



HIGH SPEED DOORS INSTRUCTIONS

  • Manufacturing
  • Pharmaceutical
  • Cold Storage
  • Transport  and Distribution
  • Food Processing
  • General Warehousing
  • Clean Rooms
Member of International Door Association

ITEMS PERFORMANCE

Driver method

Direct drive (inside)

Gear reducer motor

Patent Cyclo gearmotor and speed reducer + brake

Control method

Programmable Logic Controller+inverter Printed circuit board

Open-close speed

Open: 0.5~1.4m/sec; Close: 0.5~0.8m/sec; speed adjustable

Position device

Optical encoder

Opening-height setting

Operatable

Polyesterfibre reinforced PVC canvas

Fireproof, anti-ultraviolet, anti-static, anti-mildew; cold-resistant canvas, 1000 dens, is endurable to -30°C, reinforced with heavy duty fibre thread, with color choices of transparent orange and transparent white; common canvas, 1000 dens, with color choices of orange, blue, and white.

Anti-airflow pipes

On the surface and the bottom of canvas: ɸ33.4X1.6mm high tension galvanized steel pipe

Upper-limit stop setting

Adjustable

LED light/set display

Installed

Illuminated pushbutton Actuators (on panel)

For up, stop, down, manual, auto, open-height, indicate light

Open-close sensor

Infrared sensor, radar, radio remote control (optional)

Safety device

Photocell on door-line

Interlock control

Installed

Door piller track

Electrostatic-spray painted galvanized steel

Power

Three phase AC220V, 50Hz or 60Hz

Controlling device equipped on every door

Control panel (6 buttons) X 1pc; three button switch X 1pc; photocell X 1set, or infrared sensors X 1 set for opening height lower than 343 cms, or 135 inch





COMPONENTS

LED indicator for the ease of operation

Upper-limit stop setting
Upper-limit stop setting

Open-height setting
Open-height setting Open-height setting

Six button control panel
Six button control panel	Six button control panel

SENSORS

Photocell Sensor


Radar Sensor


Infrared Sensor
